Bed Rail Bracket to Widen Beds

Bed Hardware

Bed Rail Bracket to Widen Beds are a great option for older beds needing a wider mattress. This style requires side rails to use a double hook fastener, does-not work with other types of rail fasteners. Brackets enable width of bed, to be widened up to 3" on each side. Sold as a set of 4 to widen one entire bed. If side rails are not long enough they will need to be replaced or lengthened (by a cabinetmaker).

Bed Rail Bracket to Widen Beds Overall Width: 3-3/4" Width Between Slots: 3-1/4" Height: 3-3/4" Depth: 1-1/4" Slot Width: 5/16" Screws not included, as length determined by bedpost

Widens wood beds which use with our #5997K style Rail hook fasteners

This bracket is a heavy gauge steel that is very strong and durable. It has a brown finish.

Install Bed Hardware Bracket

• Determine additional width needed to accommodate mattress. Divide this extra width measurement by 2, as you will add half to each side of bed.
• Determine amount added, to outside of each side of headboard and footboard, by adding the above calculated half measurement.
• At mounting location: cut slit into left and right side of headboard and footboard.
• Slit should be cut a generous 3/8" wide by 1-1/8" deep.
• If slit already exists it may need to be widened.
• If the slit has pins in it, the pins will need to be removed.
• One end of bracket inserts into slit. Other end of bracket overhangs side of bed.

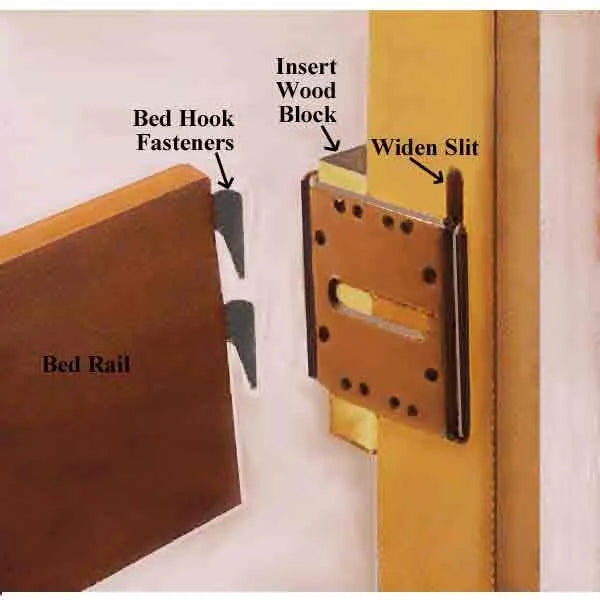

• Place block of wood between bracket and bed to stabilize (see diagram). Screw brackets into place.

To remove old pins used for bed hooks

• Drill small hole opposite pin in bed post.
• Then use a small punch tool to drive pin out original entry hole.
